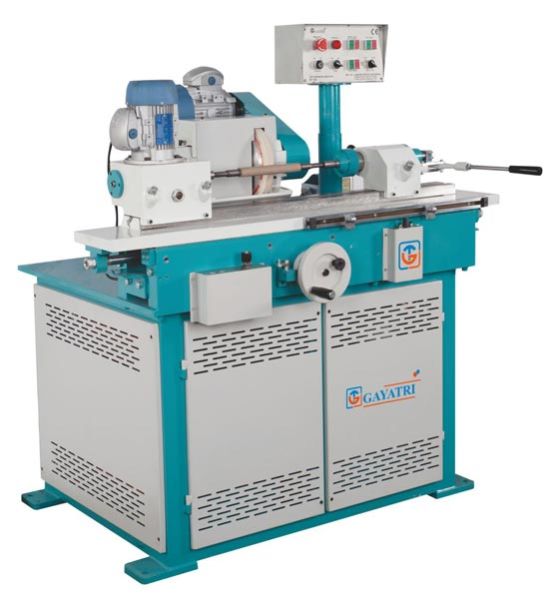

Cot Grinding Machine

Hydro-pneumatically operated to grind R/F and SF top rollers on pneumatically operated Centreless Grinding Attachment with 200 mm. wide emery having surface finish accuracy as per international standards. Loading & Unloading of top rollers are automatically with auto feeding system which is controlled by digital LCD electronic timer to set grinding time. Draw Frame and Comber rollers are grinded between centre by the help of MT 2 dead centre with 25 mm. wide emery. Vibration free design for high accuracy, more productivity and less maintenance.

We are the main supplier of this product.

Semi Hydraulically operated suitable to grind R/F and S/F top rollers on manually operated Centreless Grinding Attachment with 200 mm. wide emery with hydraulically operated table traverse motion having surface finish/accuracy as per international standards. Draw Frame and Comber rollers are grinded between centre by the help of MT 2 dead centre with 25 mm. wide emery. Vibration free design for high accuracy, more productivity and less maintenance.

This machine has been sophistically designed and constructed to perform vibration free for high accuracy, high productivity, Superior operability with very less maintenance. Hydro Pneumatically operated to grind R/F and S/F top rollers only after measuring pre-determined size on pneumatically operated Centreless Grinding Attachment by moving Grinding stone forward backward and Oscillating movement Hydraulically operated with 200 mm. wide emery having surface finish accuracy as per international standards. To load 75 to 80 top rollers of R/F or S/F at a time in adjustable magazine which will come one by one after measuring for grinding automatically with auto feeding system which is controlled by digital LCD electronic timer to set grinding time. pre-setting of the machine is done by manually as well as automatically. We have provided Automatic Dressing Of Grinding Stone and highly efficient dust extraction unit.

We are the main supplier of this product.

We are the main supplier of this product.

Fully Hydraulically operated suitable to grind RIF and SIF top rollers on Centreless Grinding Attachment with 200 mm. wide emery controlled by digital electronic timer to set grinding time for arbour and for replacing fresh arbour to be ground having surface finish/accuracy as per international standards. Draw Frame and Comber rollers are grinded between centre by the help of MT 2 dead centre with 25 mm. wide emery. Vibration free design for high accuracy, more productivity and less maintenance.
